Software modules description
Here you can find information for every software module - what memory device have to read from immobox, expected lenght of readed file, what transponder have to be used, is transponder ready to start car or have to be matched using diagnostic device and PIN code. Some modules like 30,31,36,39,44,57,102,103,146,152 do not need files or they can be used in 2 ways - with or without file information.
Chevrolet dashboard ID46
Memory device is serial eeprom 160D0W (35160) 8-pin SMD package.
Expected file size is 2048 bytes.
Use TMPro chip or PCF7936 transponder.
Written transponder is ready programmed to start car.
Yamaha Majesty 125 engine ECU
Memory device is serial eeprom 93c56 8-pin SMD package.
Expected file size is 256 bytes.
Use TMPro chip or K-JMD transponder.
Written transponder is ready programmed to start vehicle.
KUBOTA digger engine ECU
Memory device is serial eeprom 93c86 or 24c16 – both are 8-pin SMD package.
Expected file size is 2048 bytes.
Use TMPro chip or Texas Crypto transponder.
Written transponder is ready programmed to start the vehicle.
BMW bike handsfree key unit ZADI
Memory device is INFINEON TRICORE TC233-32.
You can read INFINEON TRICORE TC233-32 with VVDIProg, view connection diagram.
Expected file size is 131072 bytes.
Software can program:
– UNLOCKED BMW handsfree key.
– Texas Crypto 128-bit AES transponder.
Written handsfree key or transponder are ready programmed to start bike.
IMPORTANT NOTE: in case you use transponder you must place it close to antenna for to start bike. In case you use handsfree key you must place it close to antenna for to activate it. View different antenna locations.

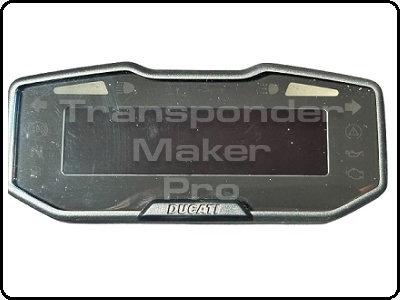

Ducati Scrambler 800 dashboard
Memory device is serial eeprom 95c512 SMD8 package.
Expected file size is 65536 bytes.
Use TMPro chip or Texas Crypto 40/80 bit transponder, for example Ford 80-bit
Software shows 4-digit PIN code.
Written transponder is ready programmed to start bike.
Mazda BCM Mitsubishi
Memory device is serial eeprom 24c04 SMD8 package.
Expected file size is 512 bytes.
Use TMPro chip or K-JMD transponder.
Written transponder is ready programmed to start vehicle.
Mitsubishi ETACS OMRON
Memory device is serial eeprom 93c86 or 95c320 SMD8 package.
Expected file size is 1024 or 4096 bytes bytes.
Use TMPro chip or PCF7936 transponder.
Written transponder is ready programmed to start vehicle.
Ducati,KTM handsfree Asahi-Denso
Memory device is Renesas MCU R5F10BGG 64-pin package.
You can read Renesas R5F10BGG with TMPro.
View connection diagram for Ducati.
View connection diagram for KTM.
Expected file size is 4096 bytes bytes. Use original handsfree key or Texas Crypto 128-bit AES ID8A transponder.
Written transponder is ready programmed to start motorbike.
Ducati Hypermotard 698 dashboard MAE
Memory device is Motorola 9S12G192 100-pin package.
You can read Motorola 9S12G192 with TMPro, view connection diagram.
IMPORTANT NOTE: In 50% Motorola MCU is LOCKED against reading. So please try to read your dashboard before to order software.
Expected file size is 4096 bytes bytes.
Use TMPro chip or Texas Crypto 40/80 bit transponder.
Written transponder is ready programmed to start motorbike.

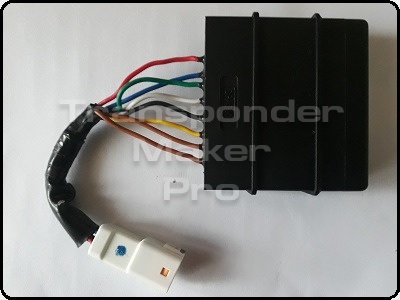

Triumph motorbikes immobox SPARK
Memory device is Renesas R5F10BAGL 30 pin SMD package.
You can read and write Renesas with TMPro, view connection diagram
Expected file size is 4096 bytes. Use TMPro chip or PCF7938XA transponder.
Written transponder is ready programmed to start the bike.
