Software modules description
Here you can find information for every software module - what memory device have to read from immobox, expected lenght of readed file, what transponder have to be used, is transponder ready to start car or have to be matched using diagnostic device and PIN code. Some modules like 30,31,36,39,44,57,102,103,146,152 do not need files or they can be used in 2 ways - with or without file information.
Fiat, Lancia, Citroen, Peugeot immobox Delphi
Memory device is serial memory 93c46 SMD8 package.
Expected file size is 128 bytes.
Use TMPro chip or T5 transponder.
Written transponder is ready programmed to start the vehicle.

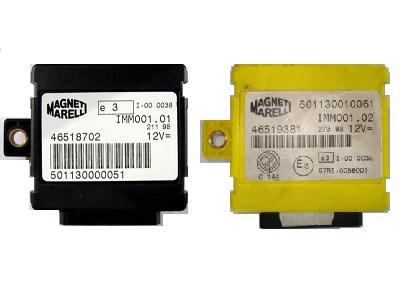

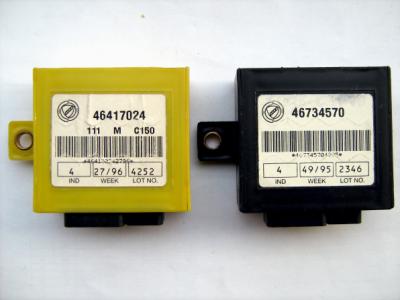

Fiat, Lancia, Maserati IMM001.01 immobox Marelli
Memory device is Motorola MCU MC68HC05E6 SO28 package.
Expected file size is 160 bytes.
Use TMPro chip or T5 transponder.
Written transponder is ready programmed to start the vehicle.
Fiat, Lancia IMM110.01 immobox Marelli
Memory device is Motorola MCU MC68HC908AZ32 QFP64 package.
Expected file size is 512 bytes.
Use TMPro chip or T5 transponder.
Written transponder is ready programmed to start the vehicle.
Alfa Romeo, Iveco CODE1 immobox Bosch
Memory device is serial eeprom 93c46, which can be either DIL8 or SMD8 package.
Expected file size is 128 bytes.
Use TMPro chip or T5 transponder.
Written transponder is ready programmed to start the vehicle.
Alfa Romeo CODE2 immobox Bosch
Memory device is serial eeprom 93c56 SMD8 package.
Expected file size is 256 bytes.
Use PCF7935 or Silca T15 - JMA TP14 transponder.
Written transponder is ready programmed to start the vehicle.
If old keys are erased, software shows PIN code and prepares transponder, ready to be matched with vehicle using diagnostic device.

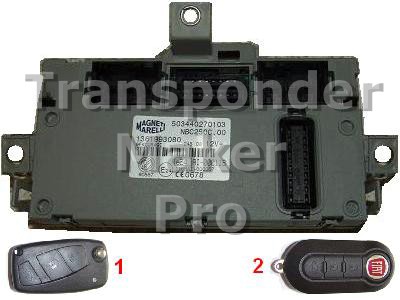

Fiat, Lancia, Alfa Romeo, Maserati CODE2 with BSI Marelli
Memory device is Motorola MCU, which can be either MC68HC912DG128 or MC9S12DG256, both QFP 112 package.
You can read and write Motorola with TMPro, view connection diagram.
For MC68HC912DG128 expected file size is 2048 bytes, for MC9S12DG256 file size must be 4096 bytes.
Use TMPro chip or Megamos Crypto or TS48 transponder.
Software shows 5-digit PIN code.
Written transponder is ready programmed to start the vehicle.
Fiat CODE2 with BSI Delphi
Memory device is serial eeprom 93c66 SMD8 package.
Expected file size is 512 bytes.
Use TMPro chip or Megamos Crypto or TS48 transponder.
Software shows 5-digit PIN code.
Written transponder is ready programmed to start the vehicle.
Fiat, Citroen, Peugeot CODE2 immobox Delphi
Memory device is serial eeprom 93c56 SMD8 package.
Expected file size is 256 bytes.
Use TMPro chip or Megamos Crypto or TS48 transponder.
Software shows 5-digit PIN code.
Written transponder is ready programmed to start the vehicle.
Fiat, Lancia IMM100.01 immobox Marelli
Memory device is Motorola MCU MC68HC908AZ32 QFP64 package.
Expected file size is 512 bytes.
Use TMPro chip or Megamos Crypto or TS48 transponder.
Software shows 5-digit PIN code.
Written transponder is ready programmed to start the vehicle.

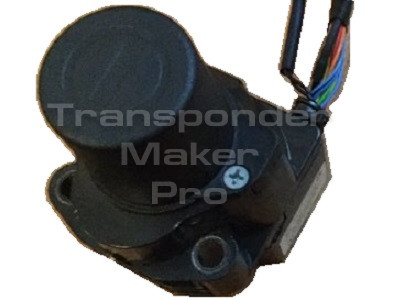

Audi immobox Delphi
Memory device is serial memory 93c46 SMD8 package.
Expected file size is 128 bytes.
Use TMPro chip or T5 transponder.
Written transponder is ready programmed to start the vehicle.
