Software modules description
Here you can find information for every software module - what memory device have to read from immobox, expected lenght of readed file, what transponder have to be used, is transponder ready to start car or have to be matched using diagnostic device and PIN code. Some modules like 30,31,36,39,44,57,102,103,146,152 do not need files or they can be used in 2 ways - with or without file information.
Subaru 2013 BCM Mitsubishi
Memory device is serial eeprom 24c02 SMD8 package.
Expected file size is 256 bytes.
Use original Subaru key or Texas Crypto 40/80 bit transponder, for example Ford 80-bit .
Written transponder is ready programmed to start vehicle.
BMW bikes 2012 immobox EWS
Memory device is Motorola 9S12G128.
You can read Motorola 9S12G128 with TMPro, view connection diagram.
If Motorola is locked, TMPro will unlock it automatically before to read eeprom area.
Expected file size is 4096 bytes. Also you can synchronise engine ECU and immobox if they are not matched pair.
Also you can synchronise engine ECU and immobox if they are not matched pair.
Use TMPro chip or Texas Crypto 40/80 bit transponder, for example Ford 80-bit.
Written transponder is ready programmed to start bike.
Below is procedure how to match BMW immobox and engine ECU:
1.Read eeprom area from MCU in engine ECU.You need tool that can read TRICORE MCU.
2.Connect EWS to TMPro box and start TMPro software.
3.Load engine ECU eeprom file in TMPro.
4.If file is recognised as "engine ECU file for BMW motorbikes EWS" - software 191 for BMW with normal key will be selected.
5.If your motorbike is keyless with push-start button - from drop-down menu please select manually software 198.
6.Press SELECT AND WRITE MEMORY DEVICE button.
7.TMPro will open window for file loading.
8.Here you must select a file that you want to write into EWS: - if you want to use your file for this EWS - select that file and press OK. - if file for EWS doesn`t matter - press Cancel.TMPro will use built-in in software EWS file.
9.TMPro will transfer VIN and synchro data from ECU file to EWS file.Procedure for matching will begin.
10.At end of procedure TMPro will read eeprom area.
11.Program new transponder(s).
Job done.

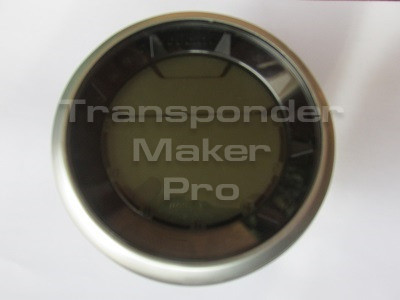

Ducati Monster dashboard MTA
Memoy device is serial eeprom 24c16 SMD8 package.
Expected file size is 2048 bytes.
Use TMPro chip or K-JMD transponder.
Software shows 4-digit PIN code.
Written transponder is ready programmed to start bike.
Ducati Monster dashboard COBO
Memoy device is serial eeprom 24c512 SMD8 package.
Expected file size is 65536 bytes.
Use TMPro chip or Texas Crypto 40/80 bit transponder, for example Ford 80-bit .
Software shows 4-digit PIN code.
Written transponder is ready programmed to start bike.
Fiat South America immobox Marelli IMM009.10
Memory device is Motorola 9S08DZ32 32-pin SMD package.
You can read Motorola with TMPro, view connection diagram. Software shows 5-digit PIN code.
Use TMPro chip or Megamos Crypto or TS48 transponder.
You can watch video HERE and HERE.
Written transponder is ready programmed to start car.
Great Wall immobox Delphi
Memory device is serial eeprom 93c66 SOT-23 package.
Expected file size is 512 bytes.
You can read eeprom with TMPro, view connection diagram.
Use TMPro chip or Megamos Crypto or TS48 transponder.
Written transponder is ready programmed to start car.
Memory device is serial eeprom 93c56 SMD8 package. Expected file size is 256 bytes. Use TMPro chip or K-JMD transponder.

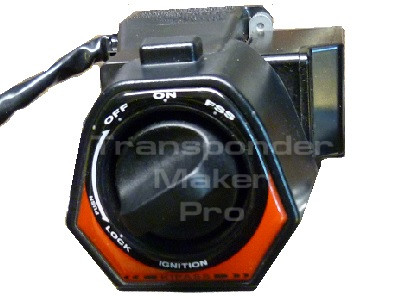

Memoy device is serial eeprom 24c16 SMD8 package.
Expected file size is 2048 bytes. Use TMPro chip or Texas Crypto 40/80 bit transponder or original Ducati key. Software shows 4-digit PIN code.
BMW bike handsfree key unit HUF
Memory device is Motorola 9S12XS256.
You can read Motorola 9S12XS256 with TMPro, view connection diagram.
Expected file size is 8192 bytes.
If Motorola is LOCKED, software will unlock it automatically before to read eeprom area.
Also you can synchronise engine ECU and immobox if they are not matched pair.
Below is procedure how to match BMW immobox and engine ECU: 1.Read eeprom area from TRICORE MCU in engine ECU.You need tool that can read TRICORE MCU. 2.Connect EWS to TMPro and start software. 3.Select manually correct software - software 191 for normal key or software 198 for push-start. 4.Load TRICORE file in TMPro. 5.Press SELECT AND WRITE MEMORY DEVICE button. 6.TMPro will open window for file loading. 7.Here you must select a file that you want to write into EWS. - if you want to use your file for this EWS - select that file and press OK. - if file for EWS doesn`t matter - press Cancel.TMPro will use built-in in software EWS file. 8.TMPro will transfer VIN and synchro data from ECU file to EWS file.Procedure for matching will begin. 9.At end of procedure TMPro will read eeprom area. 10.Program new transponder(s). Job done.
Software can program:
– UNLOCKED BMW handsfree key, you can find it HERE.
– Texas Crypto 128-bit AES transponder.
Written handsfree key or transponder are ready programmed to start bike.
IMPORTANT NOTE 1: in case you use transponder you must place it close to antenna for to start bike. In case you use handsfree key you must place it close to antenna for EWS to adopt it. View different antenna locations.
IMPORTANT NOTE 2: BMW motorbike EWS use 3 different frequencies – 434.42 MHZ , 433.92 MHz and 315 MHz. If you use VVDI BMW motorcycle remote key you must prepare it to right frequency before to program it with software.If remote key is with fixed frequency,it must be 100% same as shown on TMPro screen.
Range Rover Vogue immobox
Memory device is Motorola 9S12DG128.
You can read and write Motorola with TMPro, view connection diagram.
Expected file size is 2048 bytes.
Use TMPro chip or PCF7936 transponder.
Written transponder is ready programmed to start car.
