Fiat

Software module 201

Fiat BSI Continental type 1. Memory device is Motorola MPC5606B.
You can read and write Motorola MPC5606B with UPA-USB-S programmerView connection diagram
Expected file size is 65536 bytes. Software shows 5-digit PIN code.
Use TMPro chip or HITAG 128-bit AES remote key or PCF7939MA transponder.
Written remote key or transponder are ready programmed to start car.
REMOTE part of remote key is also programmed and work.


Vehicles equipped with this unit
Fiat:Uno (chassis F),Mobi,Toro,Strada
Peugeot:Partner (Brazil 2021->)
Citroen:Berlingo (Brazil 2021->)
Makes

Software module 202

Memory device is Motorola 9S12XEG384.
Expected file size is 4096 bytes.
Software shows 5-digit PIN code.
Use TMPro chip or HITAG 128-bit AES remote key or PCF7939MA transponder.

Written transponder is ready programmed to start car.

Vehicles equipped with this unit
Fiat:500X,500L,Toro
Ferrari:488
Makes

Software module 221

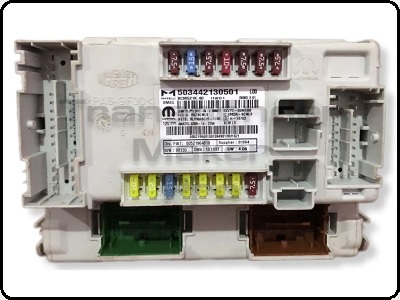

Fiat 500X, Tipo, Egea BCM Delphi
Memory device is NEC uPD70F3556.
You can read NEC data flash and program key by OBD2 with VagTacho K+CAN with Fiat activation or with UPA-S,  view connection diagram.
Expected file size is 32768 or 65536 bytes.
Software shows 5-digit PIN code.
Use original Fiat remote key with Megamos Crypto 128-bit AES ID88 transponder. Remote part is also programmed and is operating.
Programmed key must be matched with car using diagnostic device.

Vehicles equipped with this unit
Fiat:500X, Tipo, Egea
Jeep:Renegade
Makes
